The IS6605H is a fully integrated high-performance synchronous buck converter. It adopts the company's patented TCOT™ (Turbo Constant On-Time) control architecture to provide rapid transient response and make the loop more stable. It can offer continuous 6A output current within a wide input voltage range of 4V to 16V, while having excellent load and linear regulation performance, providing an ultra-compact power solution for space-constrained applications.

Supports three programmable switching frequencies: 660 kHz, 1.1 MHz or 2.1 MHz. Regardless of changes in input or output voltage, the switching frequency of IS6605H remains constant. Built-in 1.4 ms soft start timer, supporting external capacitor expansion of the start cycle from REF to GND. Integrated drain open circuit power (PGOOD) monitoring circuit, with fault locking function of 0.7V clamping voltage.

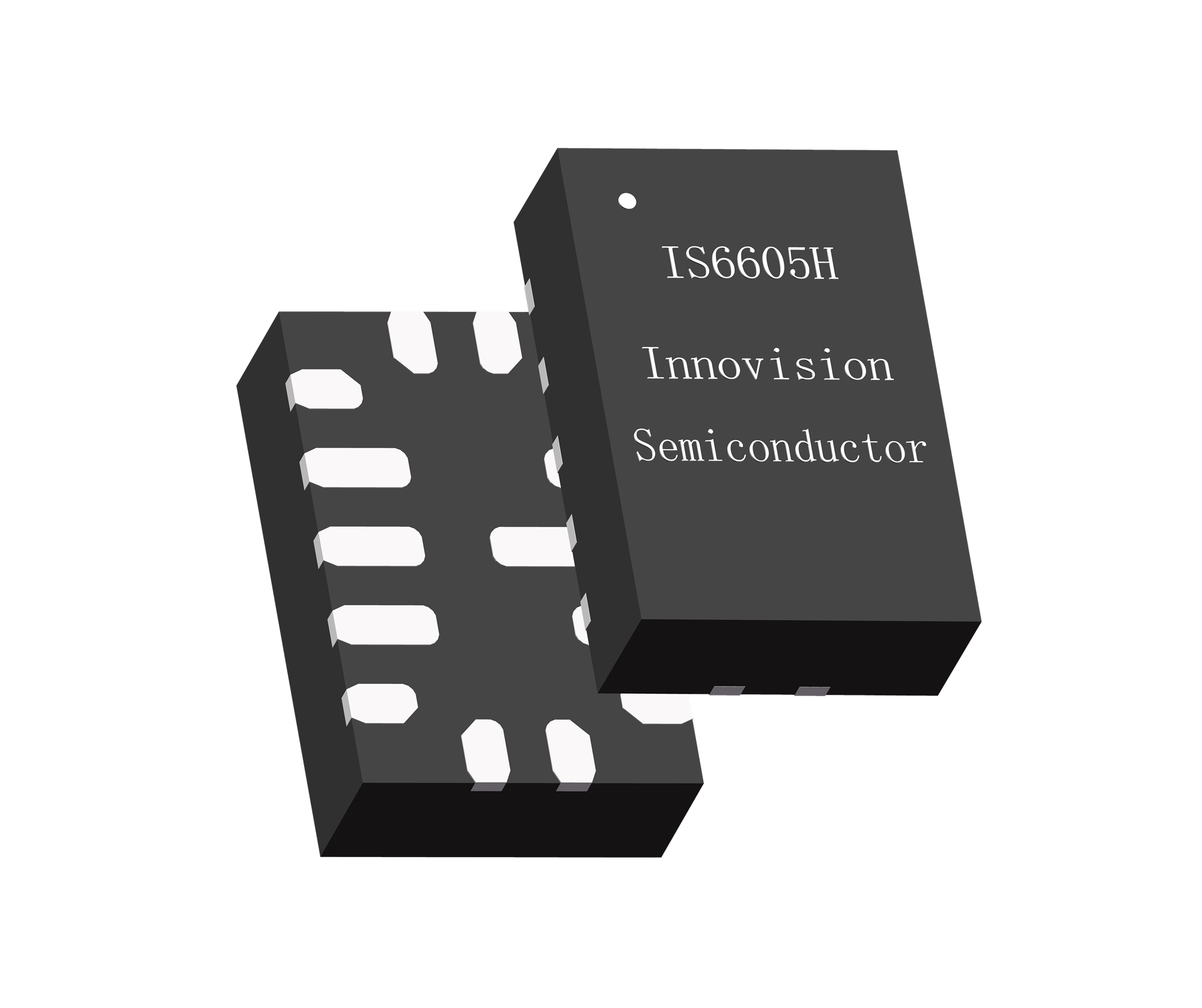

The complete protection mechanism includes overcurrent protection (OCP), overvoltage protection (OVP), undervoltage protection (UVP) and overtemperature protection. The IS6605H adopts an ultra-compact QFN-14 (2mm x 3mm) package, with optimized pin layout that minimizes the use of existing standard external components.

Product Parameter：

Input voltage: 4V ~16V

Output voltage: 0.6V ~ 5.5V

Switch frequency: 600kHz, 1.1MHz, 2.1 MHz

Output current: 6A

Efficiency: 90%

● Utilize the TCOTTM control mode to provide rapid transient response

● Wide input voltage range

  External bias VCC: 2.85 V to 16 V

  Internal bias VCC: 4V to 16V

●The continuous output current of 6A

●Low on-resistance power MOSFET for integrated circuits

● Excellent load and linear regulation performance, with voltage accuracy up to 1%

●The efficiency can reach over 90% within the load range.

●Under light load conditions, you can choose the Skip mode or the CCM mode.

●During power outage, PGOOD is actively clamped at a low level.

● Programmable soft start time

● Optional switching frequencies of 660kHz, 1.1MHz, and 2.1MHz

● Overcurrent Protection (OCP), Negative Overcurrent Protection (NOCP), Overvoltage Protection (OVP), Undervoltage Lockout (UVLO) and Overtemperature Protection (OTP)
