The IS6210A is a dual-output 8-phase voltage reduction controller designed for CPU voltage regulation and is compatible with PMBus/SVI3/PVID protocols. The chip can be configured with up to two output channels. Loop 1 can be set to operate in 8-phase mode, and Loop 2 can be configured for 6-phase operation. It adopts LGA-40 (5mm x 5mm) and achieves high efficiency within the output load range. It also supports dynamic phase control based on the load current size.

The IS6210A uses the unique TCOTTM control algorithm to achieve rapid transient response. The PMBus interface supports 127 address values configuration, which can be defined using the Innovision GUI and stored in the on-chip non-volatile memory (NVM) to reduce external components and minimize the package size. At the same time, it can also perform dynamic phase control based on the load current and provides comprehensive OVP, UVP, OCP, and OTP fault protection.

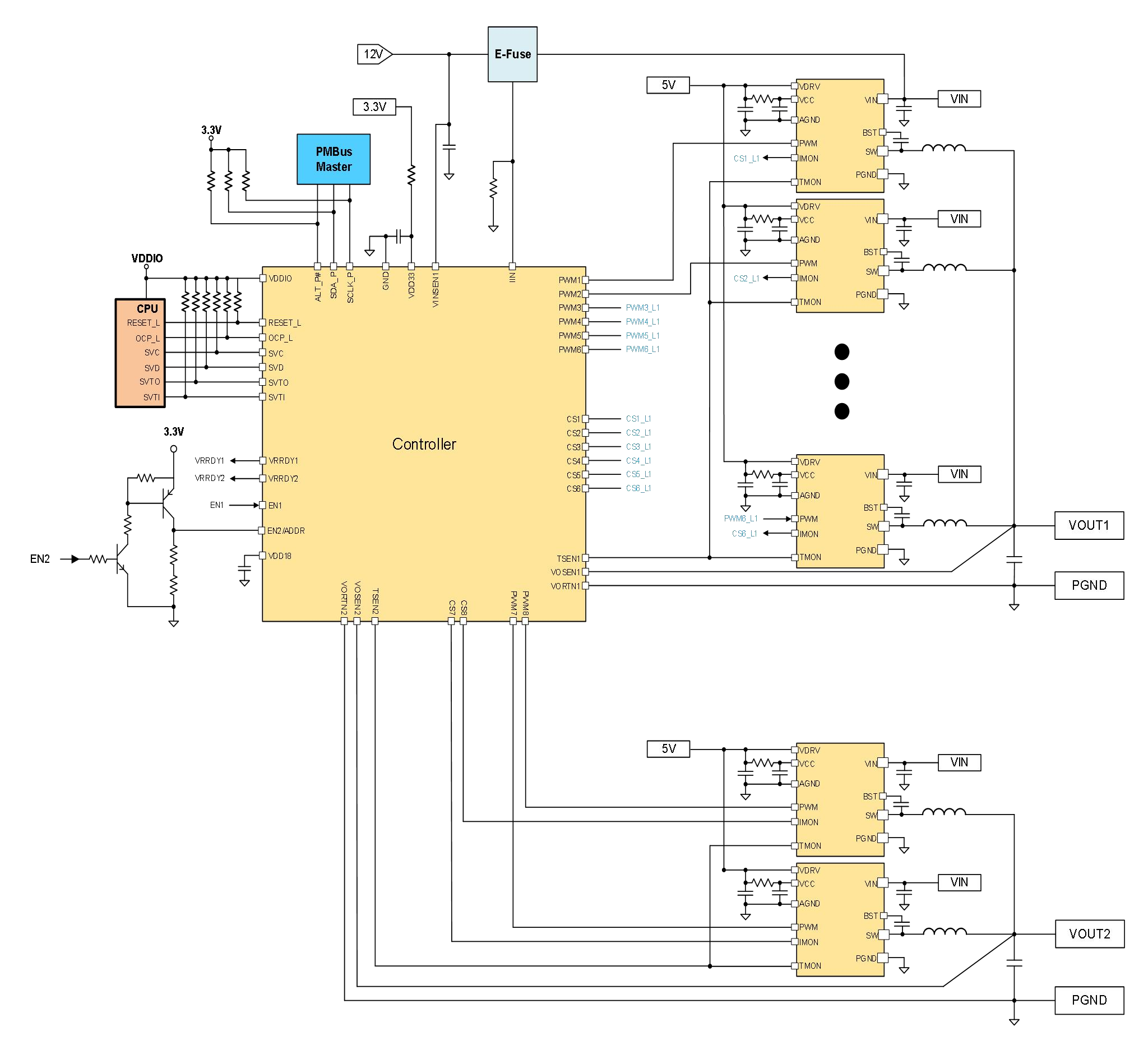

Product parameters

Protocol: PMBus/PVID/SVI3

Switching frequency: 200 KHZ ~3MHz

Phase application: 8 + 0/7 + 1

● Dual-output, 8-phase digital-analog hybrid PWM controller

● Each phase's switching frequency can be switched from 200kHz to 3MHz

● Compatible with PMBus, optional high-speed buses: SVI3 or PVID

● Dynamic phase control and automatic power state switching

● Improved transient performance in both loops, minimizing output capacitance and system cost

● Digital load linear regulation

● Supports overclocking

● Floating detection of VOSEN, VORTN and PWM

● Fault detection and protection: OVP, UVP, OCP, OTP and CAT_FLT

● PMBus system interface for reporting temperature, voltage, current and power telemetry, applicable to two outputs

● Multiple programming (MTP)

● Compatible with 3.3V tri-state driver

● 5x5mm 40-pin, 0.4mm pitch LGA-40
