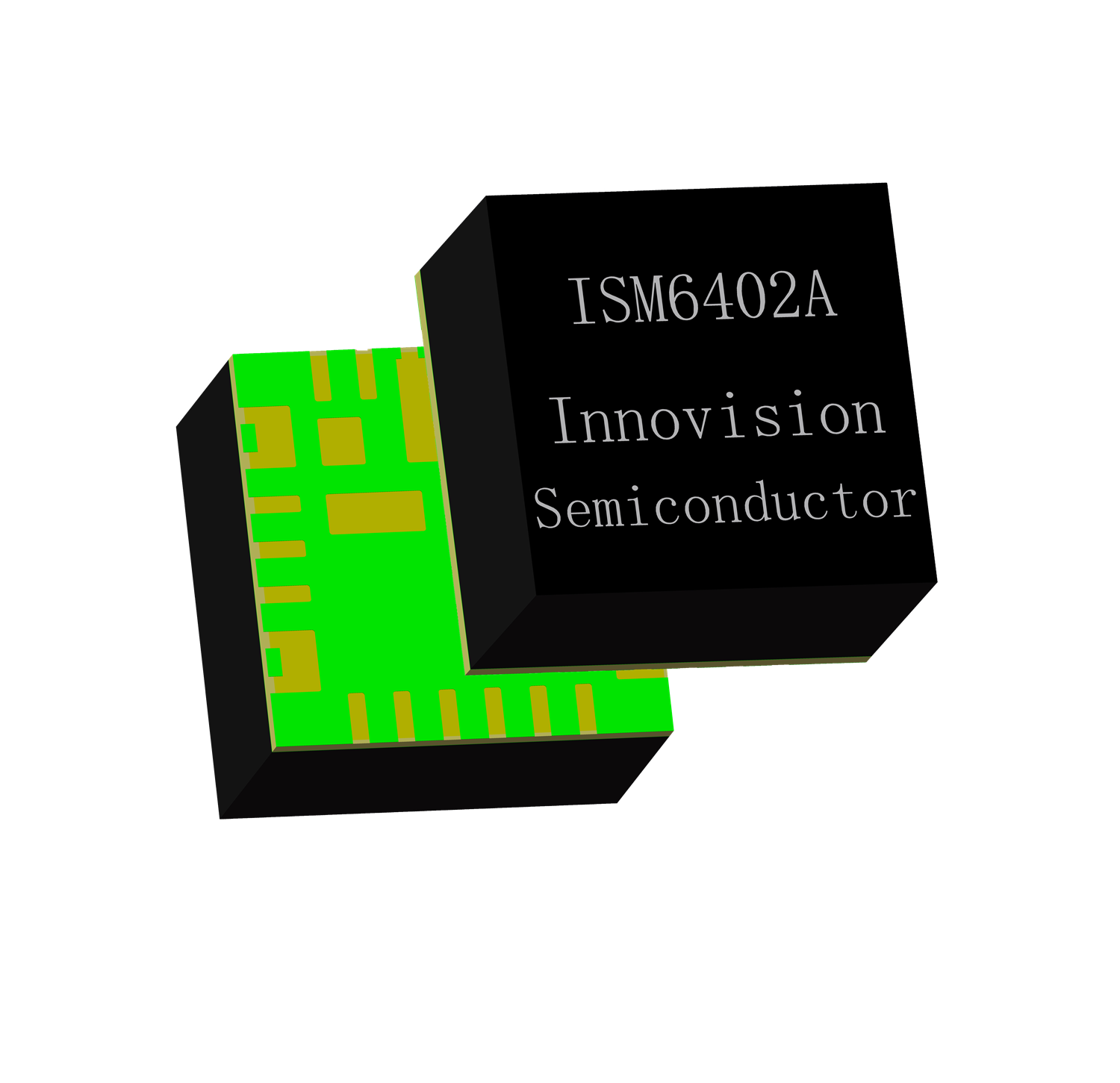

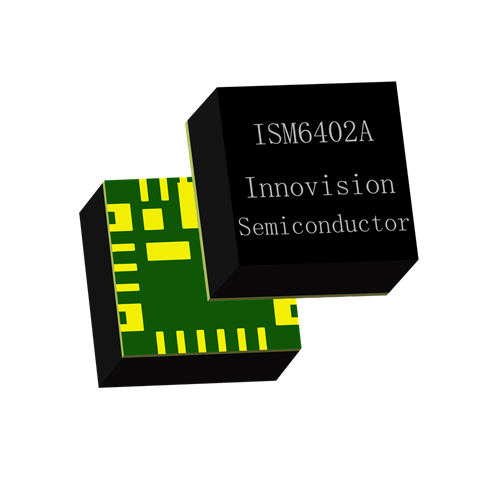

The ISM6402A is a fully integrated 15A power solution, with an internal DCDC converter, MOSFET, inductor, capacitor, and peripheral resistors integrated within. It has a 7 mm x 7 mm x 4.4 mm size, 29-pin LGA package, and is compact in size with low EMI.

The ISM6402A minimizes the use of external components and simplifies the design of the output inductor. It incorporates a 3.3V LDO, which is particularly useful for single-input power supply applications. The differential detection scheme and 0.6V internal feedback reference voltage can achieve a tolerance of ±1% over the entire operating temperature range, and provide excellent linearity and load regulation.

The ISM6402A adopts the patented Turbo Constant Time (TCOT™) algorithm to enhance the transient response. It features a complete set of functions, including power good indication, pre-bias startup, and comprehensive protection features such as OCP, NOCP, OVP, UVP, and OTP. The internal ramp compensation design ensures that all output capacitors can be used normally as MLCCs, there by saving space and cost. It is an ideal component for providing power supply for various point-of-load applications.

Product Parameter：

Input voltage: 4V ~16V

Output voltage: 0.6V ~ 5.5V

Switch frequency: 600kHz  800kHz 1MHz

Output current: 15A

●High power density

● Integrated components internally, minimalist peripheral design

● Wide input voltage range

  External bias VCC: 2.7V to 16V

  Internal bias VCC: 4V to 16V

●The continuous output current of 15A, with support for a peak current of 20A

●Integrated output inductor, VCC capacitor and bootstrap capacitor

● Utilizing the unique TCOTTM control mode to provide rapid transient response

●Outstanding load and linear regulation, with voltage accuracy up to 1%

● VOUT Tracking Function

●During power outage, the PG is clamped to the low level by the active clamp.

●Differential output voltage (VOUT) remote sampling function

● Built-in hiccup-mode short-circuit protection, over-temperature protection, pre-offset voltage output startup, soft start

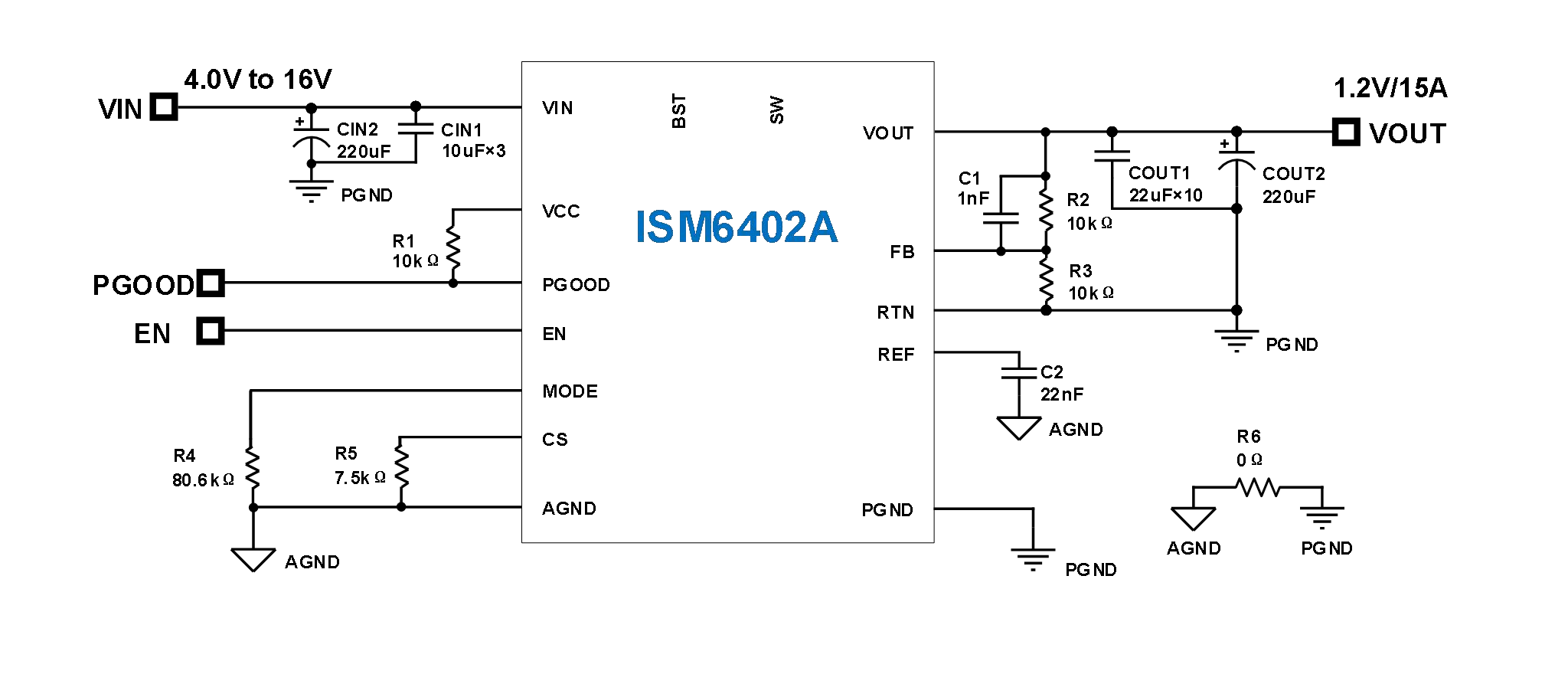

 VIN = 12V, VOUT = 1.2V, Load=15A, FCCM 1MHz

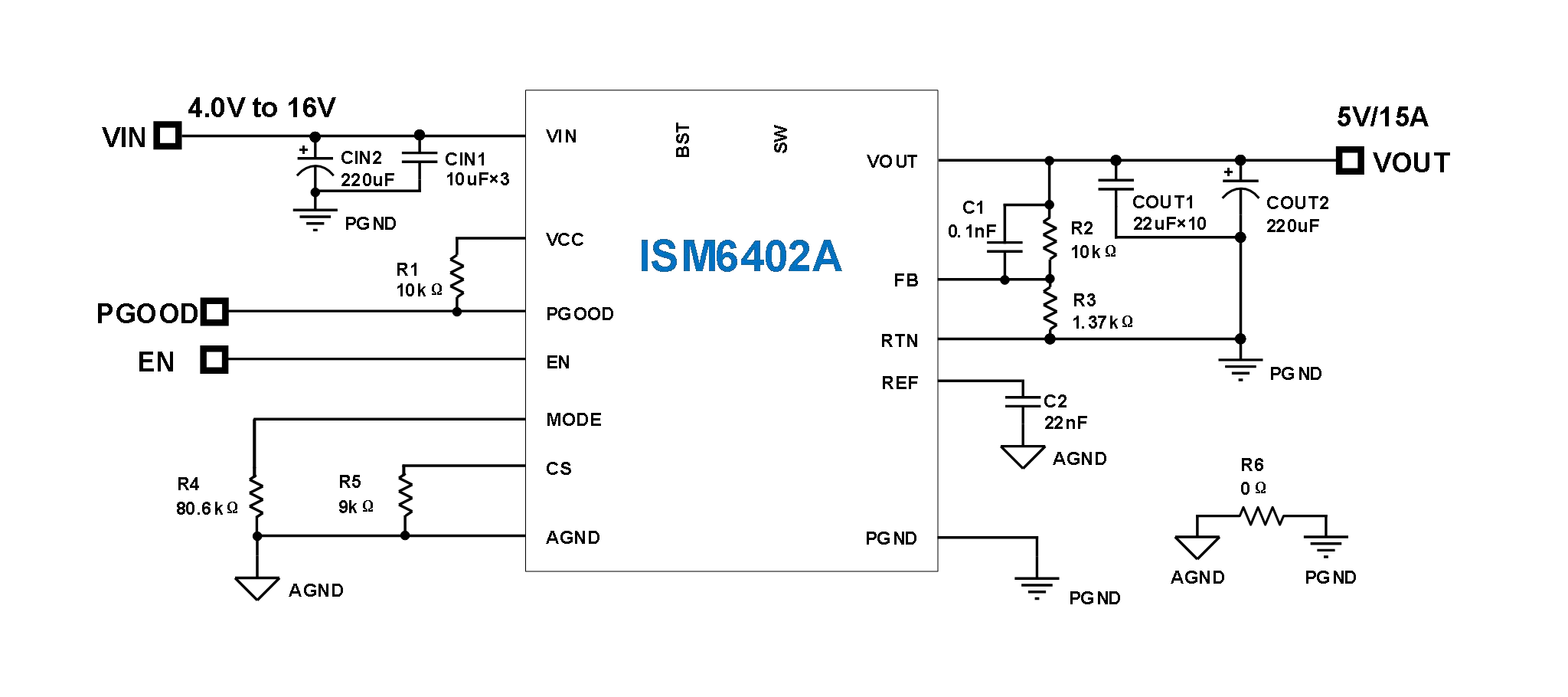

VIN = 12V, VOUT = 5.0V, Load=15A, FCCM 1MHz
